RM Series

RMSERIES

RM Series

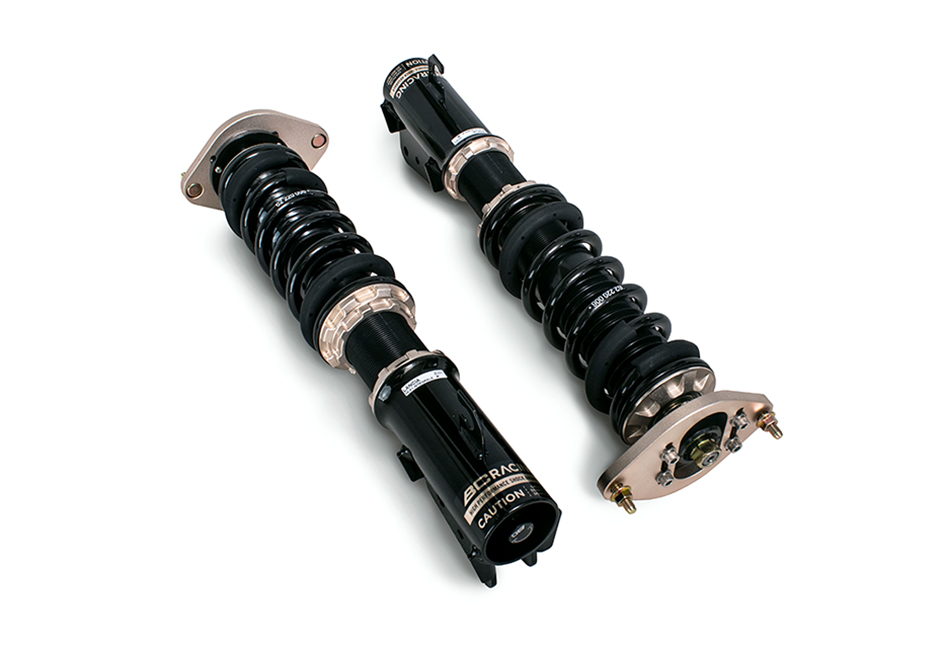

The BC Racing RM series feature high quality damping adjustable monotube inverted dampers at the front or front and rear, depending on vehicle. The RM coilovers offer the majority of the features of the BR series but with the additional benefit of the inverted damper unit. Inverting the damper unit brings with it a number of advantages such as reducing unsprung weight and moving vital damper fluid away from detrimental heat sources to avoid overheating which can cause damper fade under extreme track use.

RM Series Types


RM-MA | Front = Inverted Shock-Camber Pillowball Top Mount | Rear = Inc Rubber Top Mount or Without Top Mount

RM-MH | Front = Inverted Damper with Pillowball Top Mount | Rear = Inverted Damper with Pillowball Top Mount

Key Features


  • Inverted monotube damper bodies

  • Reduced unsprung weight

  • 30 way adjustable damping

  • Ride height adjustment separate to spring preload

  • Camber adjustable top mounts (depending on model)

  • Pillowball upper mount

  • Bearing mounted upper front spring platform

  • Dust boot to protect damper seals

  • Tapered bottom mount locking collar to prevent collar working loose

  • Custom spring rates available

  • All spare parts available with low lead times

  • 1 year manufacturer warranty

Reduced unsprung weight


Unsprung weight is reduced by moving the oil and gas reservoir way from the hub and attaching it to the shell. Unsprung weight is vital to a cars performance as a lighter wheel and hub assembly which readily moves in response to road bumps will have more grip when tracking over an imperfect road. A high unsprung weight can lead to wheel hop over bumpy ground and will reduce the quality of the ride and also untlimate handling as anything that impairs the suspension ability to maintain contact between road and tyre will be of detriment to the cars performance.

Reduced heat transfer to gas and oil reservoir


Any hard driven car with generate a lot of heat within its braking system. This heat is conducted through the hub to the damper unit. By inverting the oil and gas reservoir the oil and gas is moved away from the hub assembly . This reduces the amount of conducted heat being transferred from the braking system to the hub then to the damper and then on to the gas and oil. As the oil and gas is heated its properties change which has a knock on effect on the damping characteristics of the suspension. By keeping the gas and oil temperatures down BC Racing RM coilovers keep damping rates more consistant resulting in better performing suspension and ultimately allowing you to corner faster, which is the bottom line.

Reduced flex


The large 42mm damper rod and inverted design gives the inverted damper units much greater strength and resistance to side loadings. By reducing flex the RM inverted units lead to more consistant steering geometry resulting in more predicatable and responsive handling.
